Showing 17–19 of 19 results
-
![](https://mwmfrenifrizioni.it/wp-content/uploads/2021/01/esal-frizioni-full_35ec760eec34b8c95c36d6a3f1186aaa-300x300.png)

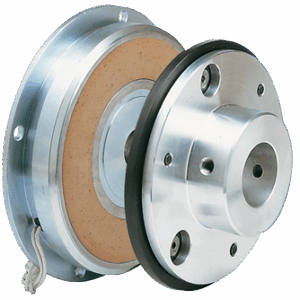

Single-disc electromagnetic clutch with laminated armature and external hub.
- Tension 24 V dc – 0 + 15%
- Used for dry applications.
- Available also with external hub (Pic.2)
- Motion is transmitted between the shaft splined to the rotor (4), and the laminated armature (3), to which can be connected a pulley, a cogwheel etc.
- Static moments (Ms) from 1.8 to 500 Nm.
General Catalog
Product Details
-
![](https://mwmfrenifrizioni.it/wp-content/uploads/2021/01/esb-frizioni-full_de343948348073059678f404acaea03b-1-300x300.png)
Multidisc electromagnetic clutch with static magnet
- Tension 24 V dc – 0 + 15%
- Used for oil bath applications.
- Motion is transmitted between the shaft splined to the hub (2) and the housing (4), which can be fitted with gears, hubs, etc.
- Static moments (Ms) from 10 to 3200 Nm.
General Catalog
Product Details
-
![](https://mwmfrenifrizioni.it/wp-content/uploads/2021/01/esb-s-frizioni-full_f131ef8f30369c951620d0199df1e3ef-300x300.png)
Multidisc electromagnetic clutch with static magnet.
- Tension 24 V dc – 0 + 15%
- Used for dry applications at low rpm only.
- Motion is transmitted between the shaft splined to the hub (2) and the housing (4), which can be fitted with flanges, pulleys, etc.
- Static moments (Ms) from 10 to 3200 Nm.
General Catalog
Product Details
