Showing 1–16 of 19 results
-

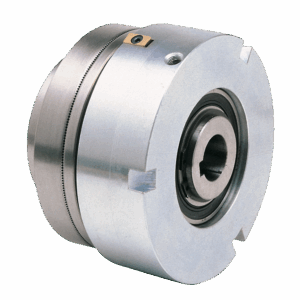

Pneumatic toothed coupling with front toothing and housing.
- Standard operating pressure: 6 Bar
- Used for dry and in oil applications.
- Mounted in perfect coaxiality between the shaft splined to the hub (1) and the part fastened to the transmission housing (7).
- Static moments (Ms) from 110 to 2100 Nm.
General Catalog
Product Details
-
Pneumatic tooth coupling, spring loaded
- The power supply (6 bar) disconnects the toothed clutch.
- Mounting: necessary a perfect alignment between the two parts
- Static moment (Ms) from 110 to 2100 Nm
General Catalog
Product Details
-
Pneumatic toothed coupling with front toothing and transmission flange.
- Standard operating pressure: 6 Bar
- Used dry and in oil.
- The unit is mounted on the drive shaft (1); using the transmission (7), the motion can be transmitted to a crown wheel or pulley.
- Static moments (Ms) from 110 to 2100 Nm.
General Catalog
Product Details
-
Spring applied, pneumatically released tooth coupling with flexible coupling
- The power supply (6 bar) disconnects the toothed clutch.
- Mounting between two opposite shafts splined the hub (1) on the drive shaft and the driven shaft on the flexible coupling hub (18).
- Static moment (Ms) from 110 to 2100 Nm.
General Catalog
Product Details
-
Spring applied, pneumatically released tooth coupling with flexible coupling
- The power supply (6 bar) disconnects the toothed clutch.
- Mounting between two opposite shafts splined the hub (1) on the drive shaft and the driven shaft on the flexible coupling hub (18)
- Static Moment (Ms) from 110 to 2100 Nm
General catalog
Product Details
-
Pneumatic toothed coupling with front toothing and transmission hub
- Standard operating pressure: 6 Bar
- Used in dry or oil bath applications.
- Mounted easily with the transmission hub (7), which can be fitted with a crown wheel or a pulley, etc. to transmit motion to a parallel shaft.
- Static moments (Ms) from 110 to 2100 Nm.
General Catalog
Product Details
-
Spring applied, pneumatically released tooth coupling, with transmission hub
- The power supply (6 bar) disconnects the toothed clutch.
- The transmission hub (6) makes it easy to assemble the toothed clutch and add a crown wheel or pulley, etc.
- Static moments (Ms) from 110 to 2100 Nm.
General Catalog
Product Details
-
Spring-applied, tooth-type coupling with collector ring
- Power supply voltage: 24V cc.- 0% + 15%.
- Used for oil and dry applications.
- Guarantees connection between a shaft splined to the toothed hub (4) and a flange or pulley fastened to the toothed housing (3).
- The connected parts must be well-aligned and coaxial.
- Static moments (Ms) from 25 to 1050 Nm.
General Catalog
Product Details
-
Electromagnetic tooth-type coupling with collector ring, operation with milled transmission (5).
- Power supply voltage: 24V cc. – 0% + 15%.
- Used in oil and dry applications.
- Mounted with drive shaft splined to the Magnet cup (1) and the driven motion is connected to the flange (6). All the connected parts must be perfectly coaxial.
- Static moments (Ms) from 20 to 6000 Nm.
General Catalog
Product Details
-
Electromagnetic tooth-type coupling with collector ring, operation with toothed transmission (5).
- Power supply voltage: 24V cc. – 0% + 15%.
- Used in oil and dry applications.
- Mounted with drive shaft splined to the Magnet cup (1) and the driven motion is connected to the flange (6). All the connected parts must be perfectly coaxial.
- Static moments (Ms) from 20 to 6000 Nm.
General Catalog
Product Details
-
Electromagnetic tooth-type coupling with collector ring, operation with milled transmission (5).
- Power supply voltage: 24V cc. – 0% + 15%.
- Used in oil and dry applications.
- The crown wheel or control pulley is fastened to the magnet (1), while the motion transmission is connected to the flange (6).
- Static moments (Ms) from 100 to 6000 Nm.
General Catalog
Product Details
-
Electromagnetic tooth-type coupling with collector ring, operation with toothed transmission (5).
- Power supply voltage: 24V cc. – 0% + 15%.
- Used for oil and dry applications.
- The crown wheel or control pulley is fastened to the magnet (1) while the motion transmission is connected to the flange (6).
- Static moments (Ms) from 100 to 6000 Nm
General Catalog
Product Details
-
Spring-applied, tooth-type coupling, with static magnet
- Power supply voltage: 24V cc.- 0% + 15%.
- Used for oil and dry applications.
- Useful for connecting a shaft splined to the hub (5) and a flange or pulley fixed onto the toothed housing (4).
- The connected parts must be well-aligned and coaxial.
- Static moments (Ms) from 50 to 12800 Nm.
General Catalog
Product Details
-
Electromagnetic tooth-type coupling with front toothing and static magnet, operation with milled transmission.
- Power supply voltage: 24V cc. – 0% + 15%.
- Used for oil and dry applications.
- The drive shaft is mounted on the rotor (3), while the driven motion is connected to the flange (5).
- Static moments (Ms) from 20 to 12000 Nm.
General Catalog
Product Details
-
Electromagnetic tooth-type coupling with front toothing and static magnet, operation with toothed transmission.
- Power supply voltage: 24V cc. -0 + 15%.
- Used for oil and dry applications.
- The drive shaft is mounted on the rotor (3), while the driven motion is connected to the flange (5).
- Static moments (Ms) from 20 to 12000 Nm.
General Catalog
Product Sheet
-
Spring-applied, tooth-type coupling with flexible coupling
- Power supply voltage: 24V cc. – 0% + 15%.
- Used only for dry applications.
- Guarantees quick, simple assembly between two shafts that are not perfectly aligned.
- The flexibility angles in radial, angular and axial direction are specified according to the size.
- Static moments (Ms) from 50 to 12800 Nm.
General Catalog
Product Details
